ZF DIAGNOSTIC KIT (DPA06)

   PRICE:   3999 EUR

   ZF Service & Repair Manuals (all in one) : 99 EUR
   ZF Service Data Management (spare parts) : 99 EUR

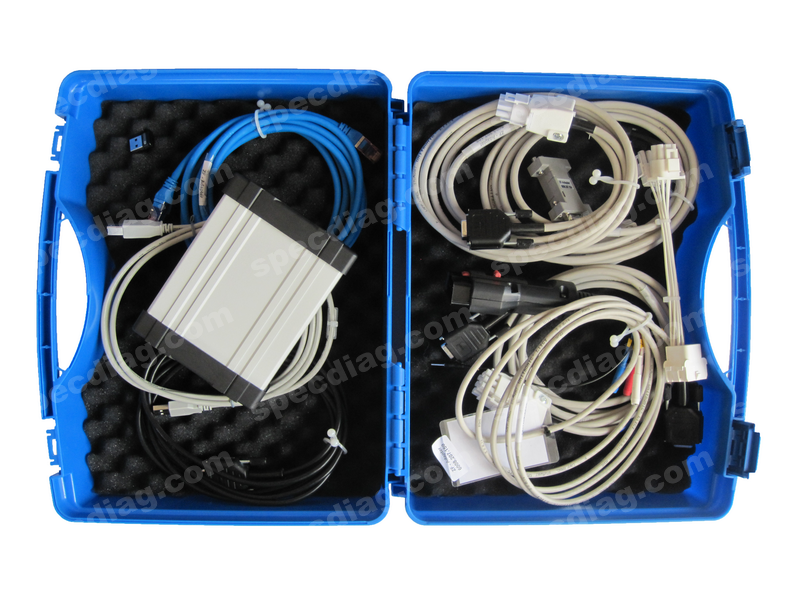

INCLUDED

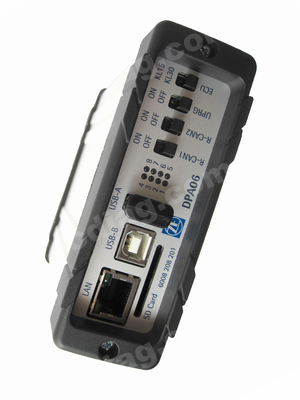

 • DPA06 Interface
 • 2 x Bluetooth sticks
 • Mini USB cable
 • USB cable
 • LAN cable
 • 15-pin male to female adapter
 • OBD2/5-pin cable - CAN (VEH)/K-line (optional pins)
 • 6-pin EST-37 cable - special version passau (only K-line)
 • 9-pin JPT (yellow) cable - CAN (ZF+VEH)/K-line
 • 9-pin MNL (white) cable - CAN (ZF)/J1708
 • 9-pin MNL (white) cable - CAN (ZF)/K-line
 • 9 to 6/3-pin cable - CAN (ZF)/K-line
 • ZF-Testman Pro Development 10.5 [2016]

DESCRIPTION

ZF-Testman Pro checks the functionality of all electronically controlled ZF products. All transmission-specific data required for a fast and comprehensive diagnosis are retrievable by the ZF diagnosis system Testman.

Supported commercial vehicle/special transmissions:
 • ASTRONIC (1, 2, mid, lite, lite test rig, 2 assembly inspection, 2 test rig)
 • ECOMAT (1, 2/4, HP 260 CAN-Converter)
 • INTRADER (EST32, EST42/48)
 • AVS
 • eTRONIC
 • WSK EST 41/61

Supported marine propulsion systems:
 • BW

Supported commercial vehicle steering systems:
 • ZF Servocom RAS-EC (RAS-EC ISO, RAS-EC KWP)
 • ZF Servocomtronic (Servotronic F)

Supported automobile car steering systems:
 • EHPS (BMW R50, OPEL EP2)
 • ZF Servolectric (BMW E85, APA E72, APA E90, VW PQ35/45 + Audi TT, VW PQ35-3)
 • ZF Active Steering (BMW E60 PL1, E70 PL4, E90 PL2)
 • ZF Servotronic (Servotronic F)

Supported off-road driveline technology and asle systems:
 • ERGOPOWER (WG110-WG311, 2-3 WG-94, EST 117/125 - 119/126)
 • T7000 (T7100 EST38, T7200 EST38, T7300 EST38, T7000 EST45/57/57A/ PVS LS EST57A)
 • ECCOM (John Deere, Claas)
 • T557 EST57A
 • HC 85

Diagnose:
 • Current errors;
 • Read error memory;
 • Delete error memory;
 • Read identification block;
 • Vehicle data sheet;

Test Inputs and Outputs:
 • System-check standstill;
 • System-check run;
 • Test unit (indication of all digital inputs and outputs);
 • Indication of all digital and analog values such as speeds, currents and voltages;

Repair support:
 • Tightening torques;
 • Setting data;
 • Special tools;
 • Test equipment;
 • Maintenance;
 • Repair work;
 • Pressures;
 • Circuit diagrams;
 • Electrical readouts;
 • PDF format;

Vehicle configuration - depending on product all vehicle specific data can be stored or shift programs selected and adjusted.

Supported languages: English, German, French, Spanish, Italian, Portuguese.

OPTIONAL
