DETROIT DIESEL DIAGNOSTIC SOFTWARE
  NOTE: Click here to buy diagnostic adapter for this software for BEST PRICE.

 • Detroit Diesel Calibration Tool (DDCT) 4.5
 • Detroit Diesel Diagnostic Link 8.01 - Engineering
 • Detroit Diesel Diagnostic Link (DDDL) 6.50
 • DDEC Reprogramming Stystem (DRS) 6.28
 • DDEC Reports 8.05

DESCRIPTION

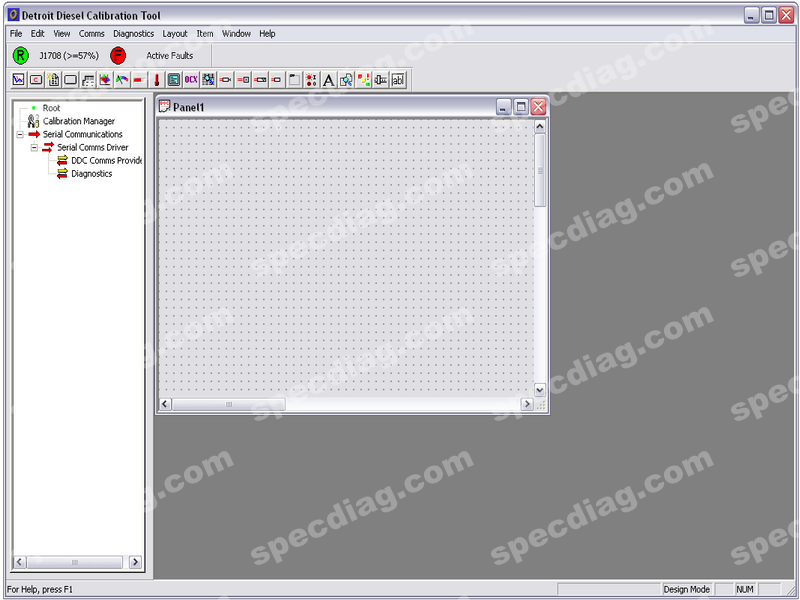

Detroit Diesel Calibration Tool (DDCT):
 • View and edit the control parameters in the ECM to optimize the control logic;
 • View instrumentation variables, such as rpm or fluid temperatures and pressures;
 • Use meta files (.MET), use and edit calibration files (.CAL).

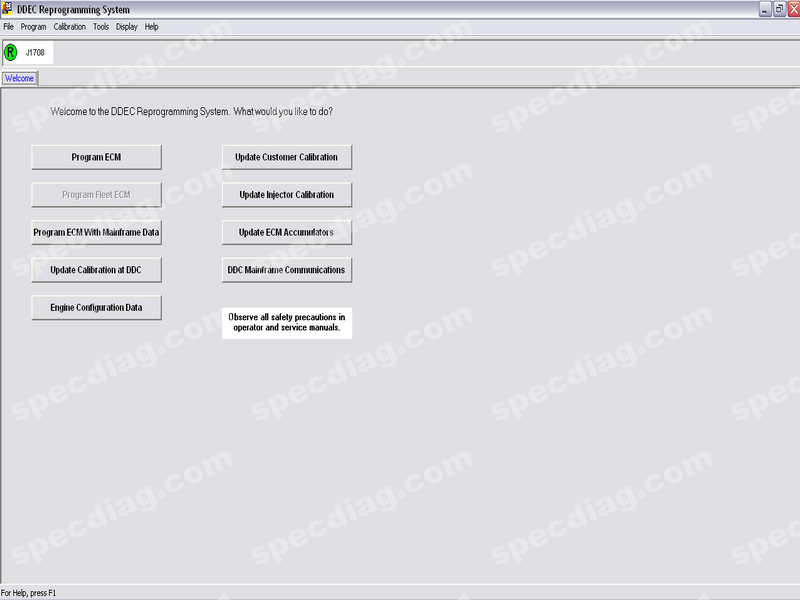

Distributor Reprogramming System (DRS):
 • Reprogram an ECM connected to the PC using a new calibration;
 • Reprogram an ECM connected to the PC using a Fleet calibration (DDEC III/IV only);
 • Update the software in the ECM connected to the PC (DDEC III/IV only);
 • View and edit a wide range of customer calibrations;
 • View and edit the injector settings (DDEC III/IV only);
 • View and edit (DDEC III/IV only) the engine accumulators;
 • View the trip accumulators;
 • View engine configuration information;
 • Extract calibrations from the ECM connected to the PC.

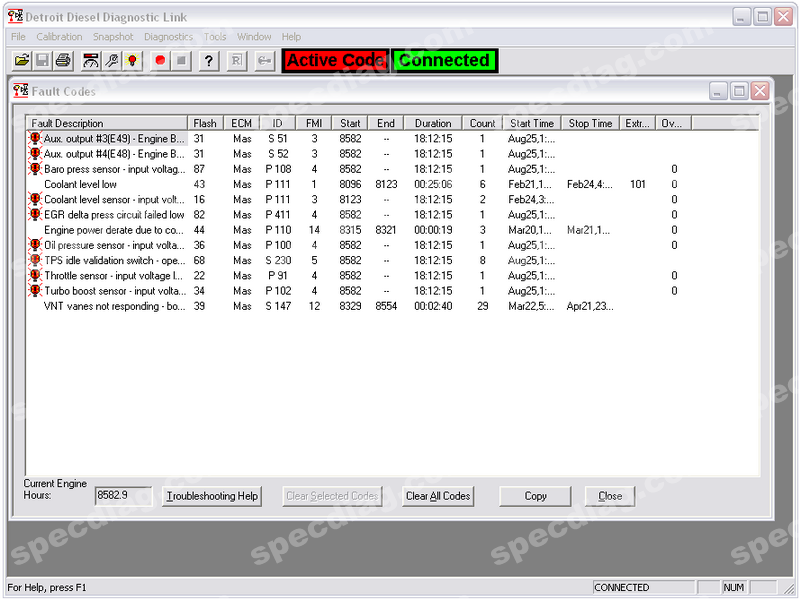

Detroit Diesel Diagnostic Link (DDDL) version 6 - supporting the setting up, maintenance and repair of engines using the DDEC II, DDEC III, DDEC IV and DDEC V Engine Control Modules, and for MBE Engines.
You can use the DDDL to:
 • Retrieve and display the current calibration from an ECM.
 • Save a calibration for the ECM in an individual truck.
 • Save a single calibration with an ECM password, so that the same calibration can be used conveniently for a fleet of trucks with the same password, or can be used by a technician who does not have access to the password.
 • Change the engine rating of a truck.
 • Set the injector calibration when you replace the injectors.
 • Set the ECM clock automatically using the PC's internal clock.
 • View an audit trail of ECM, injector calibration, ECM clock changes and Vehicle Speed setting changes.
 • Monitor a wide range of parameters while connected live to the ECM.
 • Select a group of these parameters and plot how they have varied over the last two minutes.
 • Take and save a snapshot of how the parameters vary over a period of time, so that you can replay the snapshot for detailed analysis.
 • Monitor fault codes as they occur while connected live to the ECM. You can also clear any inactive fault codes stored in the ECM.
 • Test for faults by checking the effect on performance of cutting out individual cylinders.
 • View a record of the injector timings.
 • View the ECM output functions and set them to particular values to support troubleshooting. This can be particularly useful when troubleshooting electrical problems.
 • Display specific troubleshooting help for any active or inactive fault codes.
 • View engine and trip totals.
 • View the status of a set of maintenance monitors.

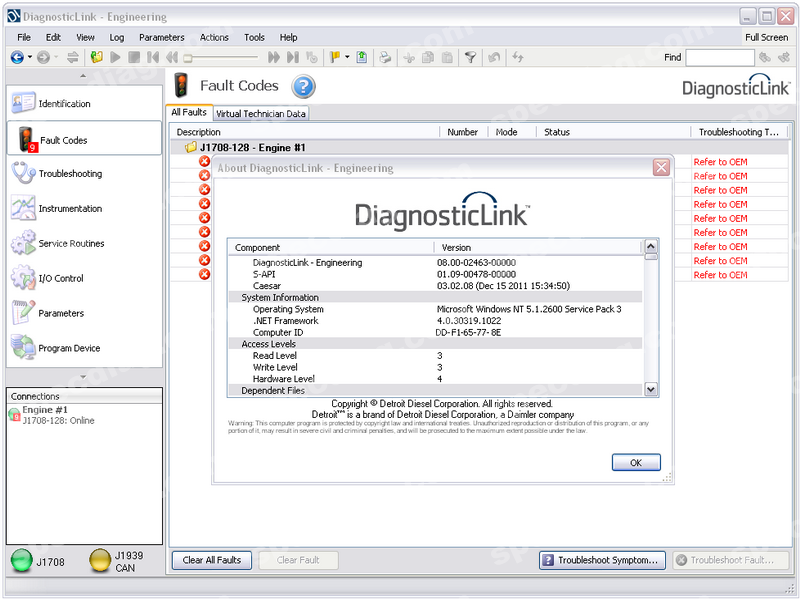

Detroit Diesel Diagnostic Link (DDDL) version 8 - Engineering - can be used on DDEC VI and newer systems:
 • View information about the connected ECUs;
 • Perform standard fault code operations;
 • Perform traditional and advanced troubleshooting;
 • Read variable values in real time and display them graphically;
 • Configure and manage parameters;
 • Perform service routines;
 • Play back logs of all connected activity;
 • Program the CPC/MCM (EPA07) and CPC02T/MCM2/ACM2 (EPA10).

OPTIONAL

Detroit Drumroll File Encryptor/Decryptor (EDITOR) 549 EUR
